ELECTRICAL SPECIFICATIONS

No	Item	Specification
1.1	Frequency Band	37.5GHz to 42.5GHz
1.2	Input VSWR	1.13: max. with isolator
1.3	Output VSWR	2.0:1 max. without Isolator
1.4	Gain	50cB min.
1.5	Gain Flatness over whole band	4dB p-p max.
1.6	Gain Variation over temperature	+2.0dB max.
1.7	Gain Stability over 24hours	+0.1dB max.
1.8	Noise Figure	2.5dB typ. with Isolator @+25°C 2.8dB max. with Isolator @+60°C
1.9	Output P1dB	+15dBm min.
1.1	Output IP3	+23dBm min.
1.11	Spurious (Pout=O0dBm)	-60dBc max.
1.12	Power Supply Voltage	+12VDC to +24VDC
1.13	Power Consumption	200mA max.@+12VDC (2.4W max. @+24VDC)
1.14	Alarm Contact	Open @Fault / Closed @OK (30mA max.)

MECHANICAL SPECIFICATIONS

No	Item	Specification
2.1	RF Input Interface	Waveguide : WR-22 Flange : UG-599/U-M (square)
2.2	RF Output Interface	MS3112E8-4P (PTO2E-8-4P) Pin Assignments A: DC Input B : DC Return C: Power Supply Alarm Output, open collector (30mA max.) D : Power Supply Alarm Return

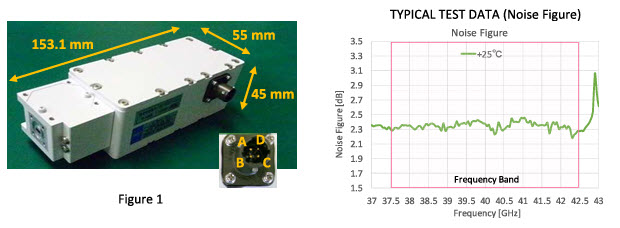

2.4	Size	153.1 (L) mm x 55 (W) mm x 45 (H) mm See Figure 1
2.5	Weight	approx. 800g

ENVIRONMENTAL SPECIFICATIONS

No	Item	Specification
3.1	Operating Temperature	-40°C to +60°C
3.2	Non-operating Temperature	-40°C to +85°C
3.3	Operating Relative Humidity	O~ 100% R.H
3.4	Non-operating Altitude	40,000 feet above sea level
3.5	RoHS	ROHS Compliant
